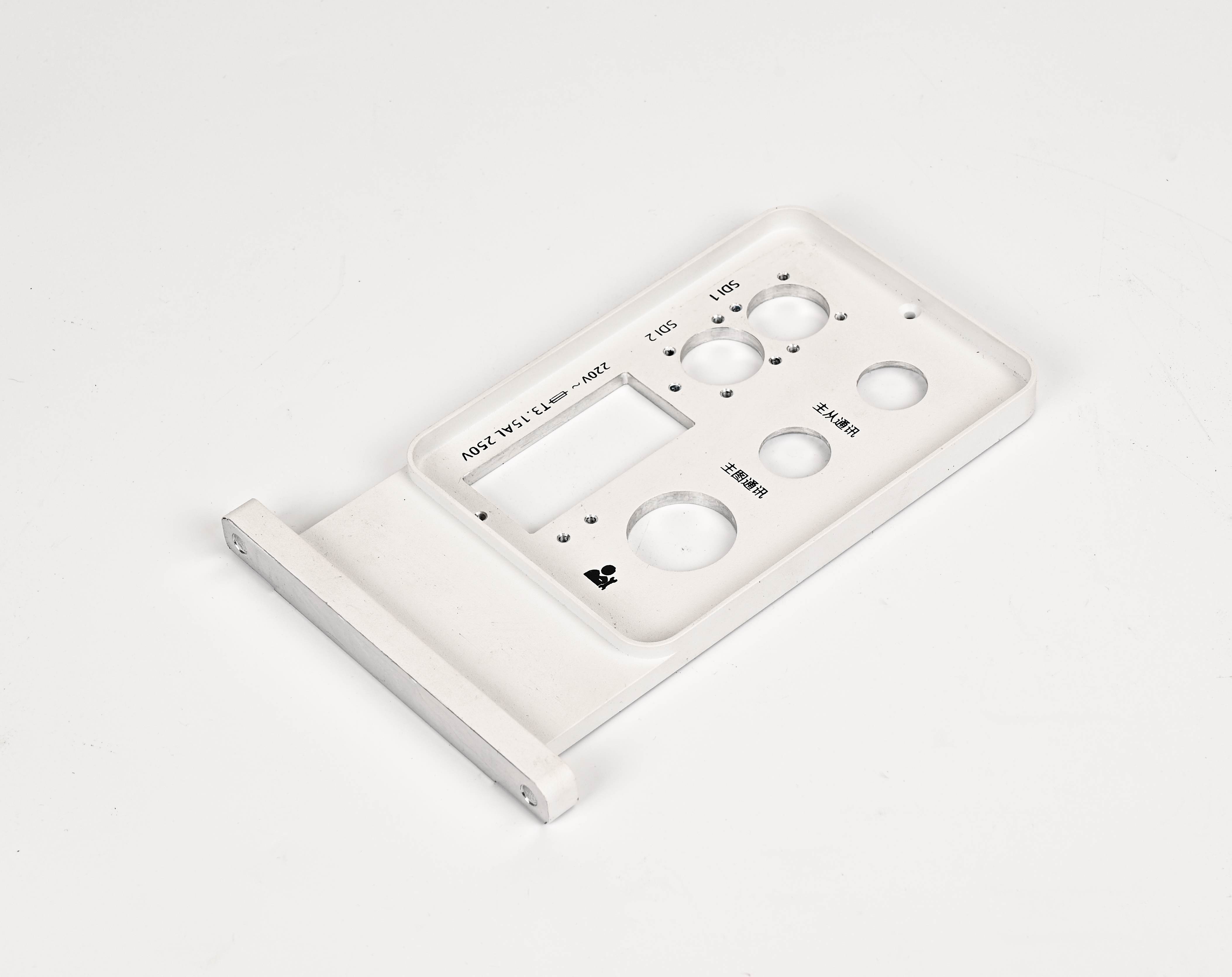

Aluminum Die Casting RF Shielding Components
| Capability | Description |
| Material Available | ADC10， ADC12, A360，A380 |
| Surface Finish available | Powder coating,painting, anodizing,E-coating,Plating etc. |
| Dimensional tolerance | High-precision die casted parts need secondary machining to meet tolerance requirements, achieving accuracy up to ±0.01mm |
| Min. Wall Thickness | Typically 1.0–4.0 mm depending on geometry and alloy (thinner sections possible with design support) |
| Hole Diameter | Cast holes >3mm |
| Draft Angle | Min 0.5° (Recommended 1° - 2°) |
| Maximum Die Life (Number of Cycles) | Zinc: 1,000,000 / Magnesium,Aluminum: 100,000+ |
| Lead Time | 30 - 35 Days (Including tooling) |
| MOQ | 100PCS |
| Production Process: | Tooling → Die Casting → Deburring → CNC Machining → Surface Finish → Inspection & Packing. |
| Inspection | CMM / Caliper / Thread Gauge / Full QC |
| Application Industry | Medical devices,Robotics, Laser equipments,Semiconductors, Consumer electrical and Automation. |
Aluminum Die Casting RF Shielding Components /Custom Die Cast RF&EMI Shielding Solutions
RF shielding components are widely used in communication systems, electronic devices and industrial equipment to protect sensitive components from electromagnetic interference.
Why Aluminum Die Casting for RF Shielding Components?
Aluminum die casting is commonly used for RF and EMI shielding applications because it provides both structural protection and manufacturing efficiency.
Key advantages include:
Complex enclosure structures
Lightweight aluminum design
Good electrical conductivity
Stable dimensional consistency
Cost-effective volume production
Die casting allows complex shielding designs, ribs, mounting points and internal structures to be produced efficiently.
Quality Control
For RF shielding components, small details affect assembly and performance.
Our inspection focuses on:
Critical dimensions
Mounting positions
Flatness control
Thread quality
Surface condition
Assembly interfaces
Inspection equipment includes:
CMM measurement
Height gauge
Projector
Microscopic inspection
